Xcontrol

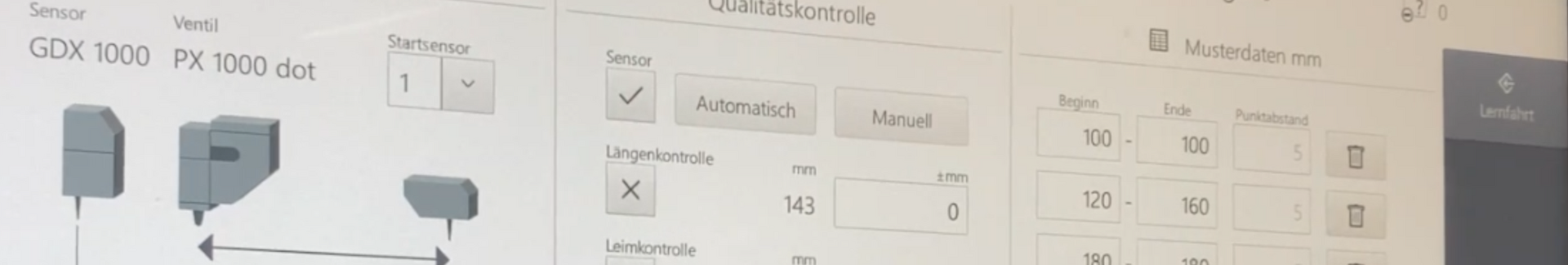

Xcontrol, control units from Baumer hhs are the heart of all production machines. No matter whether it is adhesive application, monitoring or product tracking. With Xcontrol you always have everything in sight.

Baumer hhs is your partner in all applications.

Xtend³

Intuitive system for the highest requirements

Xpect

Adhesive application for high-speed systems

Xact

Intuitive control for adhesive application

dotboard

Easy integration into packaging machines

Xcontrol Xtend³

Xtend³

Xtend³

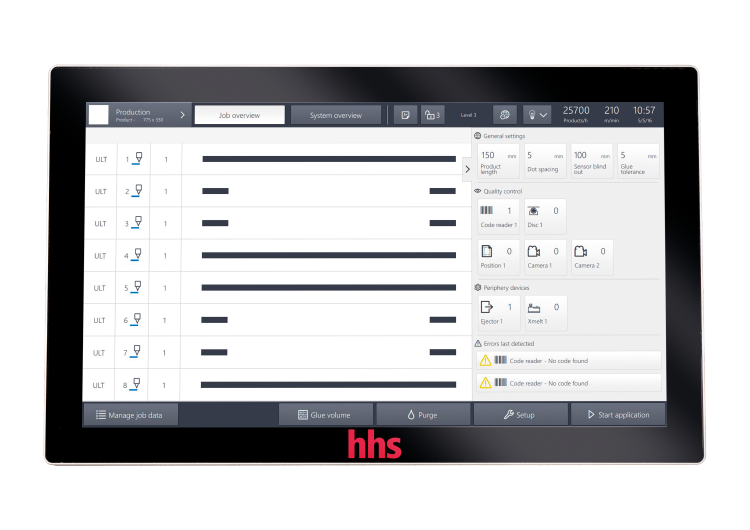

The modular intuitive control unit for all applications.

Xtend³ grows with your requirements. Simply integrate the required quality monitoring modules or product tracking and maximise your production quality.

With the production data, you can easily demonstrate your quality to your customers.

- Sensor integration

- Integration camera monitoring

- Data interface

- For all production speeds

Technical Data

Specification	Value	Unit
Power	24	V
Protection level	42	IP
Temperature range	5-40	°C
Relative humidity max.	70	%
Multitouch control unit	21,5	"
Channels max.	32

Xcontrol Xpect

Xpect adhesive application Xpect QA

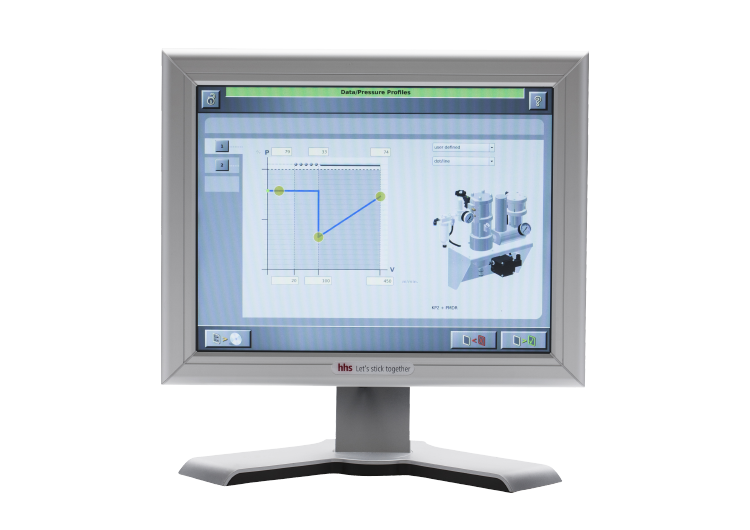

Xpect controller for adhesive application

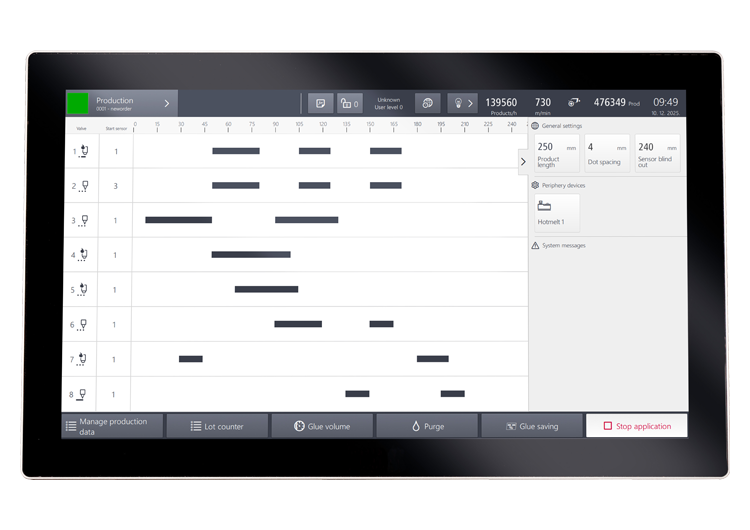

With the Xpect control unit, you have the adhesive application firmly under control. Up to 8 channels can be individually programmed.

The control unit has been specially developed for use on high-speed machines in the folding carton and tobacco industries.

- Up to 650m/min

- 8 channels

- Intuitive operation

- Compact dimensions

Technical Data

Specification	Value	Unit
Supply voltage	90 - 264	V
Mains voltage Nominal	100 -240	V
Protection class	31	IP
Temperature range	10 - 40	°C
Relative humidity max.	70	%
Channels max.	8
Max. Machine speed	650	m/min

Quality control in folding carton production

Quality control is the key to maximum customer satisfaction. With the Xpect QA system, you always have an eye on production quality.

Monitor flap coding with the Xcontrol CT 300 and disc glue application with the LNT 300.

- Code reading

- Disc glue application control

- Compact design

- For highest machine speeds

Technical Data

Specification	Value	Unit
Supply voltage	90 -264	V
Mains voltage Nominal	100 -240	V
Protection class	31	IP
Temperature range	10 - 40	°C
Relative humidity max.	70	%
Channels max.	8
Max. Machine speed	650	m/min

Xcontrol Xact

Xact Xact FFG go Xact dot box

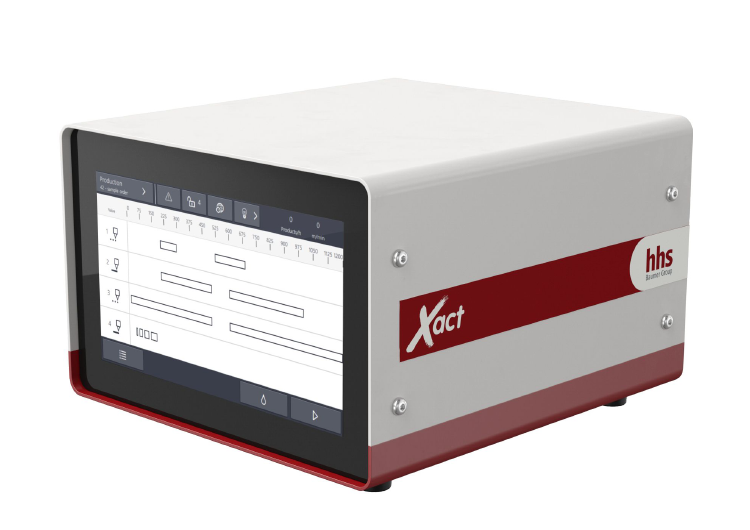

Innovative and straightforward

The Xact control unit is the ideal introduction to adhesive application control. The innovative operator guidance consistently continues the concept of Xtend³. Users will immediately find their way around.

The Xact has 4 channels and is therefore suitable for many applications in packaging production.

- 4 channels

- Easy programming

- Up to 300 m/min

- Adhesive application pattern with up to 8 sections

- Dot / line switching

Technical data

Specification	Value	Unit
Mains voltage, 1 NPE1 NPE	115 ± 10 %/230 ± 10 %	V
Control voltage, signals	24	V
Control voltage, order valves	48	V
Current consumption at 115 V	3	A
Current consumption at 230 V	1,5	A
Protection class	32	IP
Machine speed max.	300	m/min
Ambient temperature	10 - 40	°C

Data sheet: EN | DE | FR | IT | CN

The entry-level system for corrugated board production

Simple in everything.
Simple programming of the gluing of flaps. Optionally with 2 or 3 glue tracks.
Save raw materials with the integrated glue saving mode. Simply switch to intermittent application and save up to 50%.

- Glue saving mode

- Dot / line switching

- Application storage for 99 sample applications

- Innovative operation

Technical data

Specification	Value	Unit
Mains voltage, 1 NPE	115 ± 10 %/230 ± 10 %	V
Control voltage, signals	24	V
Control voltage, order valves	48	V
Current consumption at 115 V	3	A
Current consumption at 230 V	1,5	A
Protection class	32	IP
Machine speed max.	350	m/min
Ambient temperature	10 - 40	°C

Data sheet: DE | EN | FR | ES | CN

SPS connection made simple

The easy way to reduce costs and emissions is to switch to dot application in packaging production. With the dot box, it is easy to convert incoming SPS signals into dot application.

Save more than 50% adhesive with every package. An investment that pays for itself in a short time.

- Dot application

- Easy integration

- More than 50% adhesive savings

- ROI less than 3 months

Technical data

Specification	Value	Unit
Mains voltage, 1 NPE	115 ± 10 %/230 ± 10 %	V
Control voltage, signals	24	V
Control voltage, order valves	48	V
Current consumption at 115 V	3	A
Current consumption at 230 V	1,5	A
Protection class	32	IP
Machine speed max.	120	W
Ambient temperature	10 - 40	°C

Data sheet: EN | DE

Xcontrol dot board

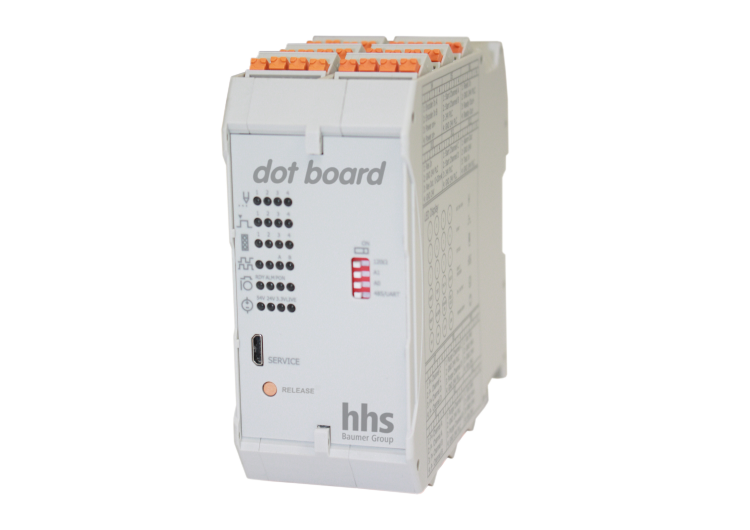

dot board

Direct integration into the electrical cabinet

The simple way to reduce costs and emissions is to switch to dot application in packaging production. With the dot board installed directly in the control cabinet, it is easy to convert PLC signals to dot application.

Save more than 50% adhesive with each package. An investment that pays for itself in a short time.

- Dot application

- Easy integration

- More than 50% adhesive savings

- ROI less than 3 months

- Optionally with external operating screen

Technical Data

Specification	Value	Unit
Supply voltage	24 ± 10 %	V
Max. power consumption	0,8	A
Power consumption	20	W
Valve voltage	54	V
Protection class	20	IP
Temperature range	0 - 40	°C
Relative humidity max.	<90	%
Use up to	2000	m

Data sheet: EN | DE | CN
