Xcold Cold glue pumps

DPP-8 DPP-4 KPE-9 KPE-6

Adhesive conveying in perfection

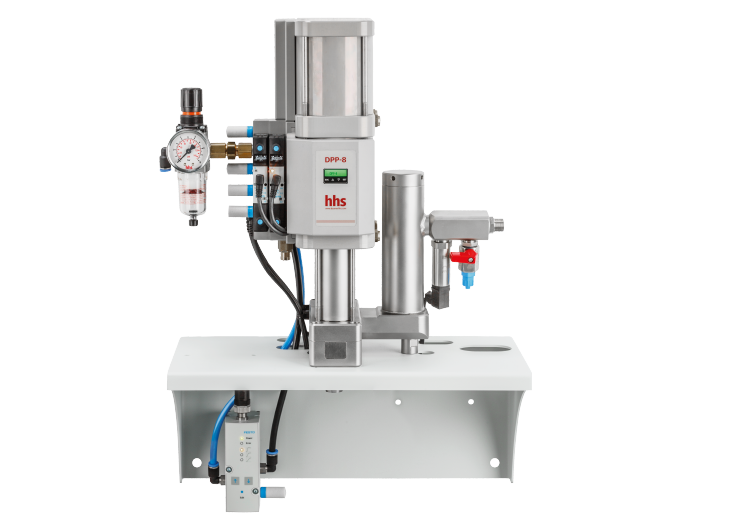

DPP-8 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

- High-pressure pump for maximum production speeds

- Networking with Xtend³ control unit

- Intelligent communication

- Error messages in the display

Technical Data

Specification	Value	Unit
Regulated output pressure max.	40	bar
Air inlet pressure	6-7	bar
Pressure ratio	8:1
Adhesive viscosity	6.000	mPaS
Max. delivery rate	2	L/min
Connected load	12	W
Weight	20,5	kg

Adhesive conveying in perfection

DPP-4 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

- High-pressure pump for maximum production speeds

- Networking with Xtend³ control unit

- Intelligent communication

- Error messages in the display

Technical Data

Specification	Value	Unit
Regulated output pressure max.	20	bar
Air inlet pressure	6-7	bar
Pressure ratio	4:1
Adhesive viscosity	6.000	mPaS
Max. delivery rate	2	L/min
Connected load	12	W
Weight	20,5	kg

Robust and precise

Electronically controlled piston pump for maximum demands.

Conveying unit for medium to high viscosity materials.

- Minimal maintenance

- Uniform adhesive application

- FDA approval

Technical Data

Specification	Value	Unit
Regulated output pressure max.	35	bar
Theoretically max. achievable outlet pressure at 6 bar air inlet pressure	54	bar
Compressed air connection	6-8	bar
Pressure ratio	9:1
Adhesive viscosity	10.000	mPaS
Max. delivery rate	2,5	L/min
Connected load	12	W
Weight	32	kg

Reliable adhesive supply

Electronically controlled piston pump for low to medium viscosity materials.

- Minimal maintenance

- Uniform adhesive application

- Up to 5.000 mPaS

Technical Data

Specification	Value	Unit
Regulated output pressure max.	20	bar
Compressed air connection	6-7	bar
Pressure ratio	6:1
Adhesive viscosity	5.000	mPaS
Max. delivery rate	0,7	L/min

Xcold Pressure Tank

DB-15

Adhesive supply for low viscosity materials

For constant speed applications.
Ideally suited for use in print finishing.

- Waterscoring

- Low pressure, up to 6 bar

- With level sensor

Technical Data

Specification	Value	Unit
Operating pressure	0,5 - 6	bar
Füllvolumen	12	l
Filling capacity	15	l
Max. Pressure	6	bar
Operating temperature	10 - 40	ºC

Xcold Cold glue application heads

PX 1000 P-500 DLK go D-500 V-500

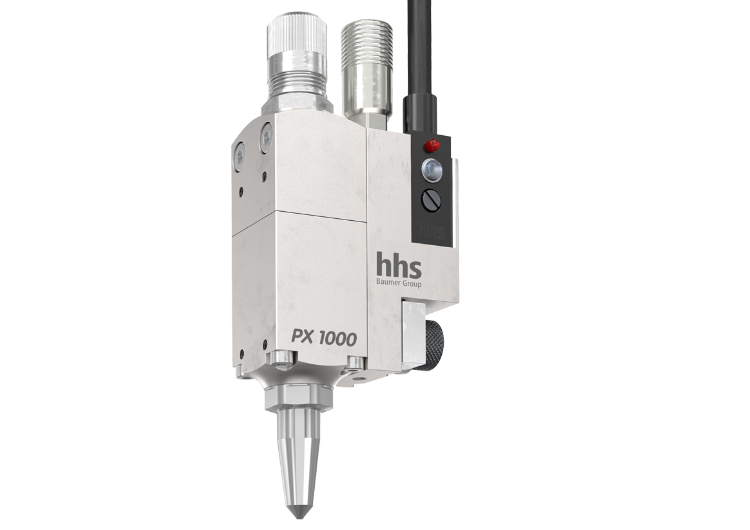

PX 1000 The new standard in cold glue application

The PX 1000 is the most powerful cold glue valve available.

With its great power, the PX 1000 ensures the operator greater flexibility in the choice of adhesives and ensures perfect bonds from the first product.

- High closing force

- Perfect start-up behaviour

- Switching cycles up to 750 Hz

- Tailing-free application

- Adhesive saving through dot application

- Multiple heads available

Technical Data

Specification	Value	Unit
Operating pressure	1,0 - 50,0	bar
Adhesive viscosity	4500	mPaS
Possible nozzle diameters	0.3, 0.4, 0.6	mm
Temperature range	15 - 45	°C
Relative humidity max.	70	%
Noise emission	<70	dBa
Switching frequency	750*	Hz

*at 20bar adhesive pressure and 1.000 mPaS

Proven thousands of times

The P-500 is proven in folding carton and corrugated production applications worldwide.

Users rely on the valve's precision and performance.

- Robust construction

- Long service life

- Switching cycles up to 500 Hz

- Reduced adhesive consumption due to dot application

- Multiple heads available

Technical Data

Specification	Value	Unit
Operating pressure	1,0 - 50,0	bar
Adhesive viscosity	3.000	mPaS
Possible nozzle diameters	0.3, 0.4, 0.5, 0.6, 0.8, 1.0	mm
Temperature range	15 - 45	°C
Relative humidity max.	70	%
Noise emission	<70	dBa
Switching frequency	500	Hz

Maximum performance for entry-level users

With the DLK go, entry into contactless adhesive application in folding cartons and corrugated board is very simple and cost-effective.

Just the entry-level model.

- Compact design

- Simple operation

- For all hhs control units

- Switching frequencies up to 300 Hz

Techical Data

Specification	Value	Unit
Operating pressure	1,0 - 30,0	bar
Adhesive viscosity	1.500	mPaS
Possible nozzle diameters	0.4	mm
Temperature range	15 - 45	°C
Relative humidity max.	70	%
Noise emission	<70	dBa
Switching frequency	300	Hz

Fast and compact

The D-500 is a compact electric cold glue head for low-viscosity adhesives.

The wide range of applications extends from print finishing to the tobacco industry.

- Switching cycles up to 750 Hz

- Nozzle shutter slide for clean restarting

- Small installation space

Technical Data

Specification	Value	Unit
Operating pressure	1,0 - 15,0	bar
Adhesive viscosity	1.000	mPaS
Possible nozzle diameters	0.3, 0.35, 0.4, 0.5	mm
Temperature range	15 - 45	°C
Relative humidity max.	70	%
Noise emission	<70	dBa
Switching frequency	750	Hz

For fast dot application

This extremely small and fast dot application head was developed for use in folding machines.

It is specially designed for the small installation spaces in OEM machines and impresses with its high-frequency dot application with low-viscosity adhesives.

- Switching cycles up to 1000 Hz

- Dot application

- Only 15 mm module width

Technical Data

Specification	Value	Unit
Operating pressure	1,0 - 6,0	bar
Adhesive viscosity	1.000	mPaS
Possible nozzle diameters	0.3, 0.4, 0.5	mm
Temperature range	15 - 45	°C
Relative humidity max.	70	%
Noise emission	<70	dBa
Switching frequency	1.000	Hz
